VF30C60 - (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions

Download the VF30C60 datasheet PDF (VF30C05 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (vf30c05 - vf30c60) 30 amp superfast power rectifiers mechanical dimensions.

Description

1 3 1 3 2 CASE Common Anode Suffix ‘‘A’’ 2 CASE Double Suffix ‘‘D’’ 1 3 2 CASE Common Cathode Suffix ‘‘C’’ www.DataSheet4U.com

Features

  • n LOW.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VF30C05_FirstComponentsInternational.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VF30C60
Manufacturer First Components International
File Size 157.85 KB
Description (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
Datasheet download datasheet VF30C60 Datasheet

📁 Similar Datasheet

  • VF3000 - 5 Port Pilot Operated Solenoid Valve Rubber Seal (SMC)
  • VF30100C - Dual High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF30100C-E3 - Dual High Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF30100S - High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF30100S-E3 - High Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF30100SG - High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF30120C - Dual High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF30120C-E3 - Dual High Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF30120S - High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF30120SG - High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
Other Datasheets by First Components International
  • VF30C05 - (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF30C10 - (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF30C15 - (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF30C20 - (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF30C30 - (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF30C40 - (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF30C50 - (VF30C05 - VF30C60) 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions

Full PDF Text Transcription

Click to expand full text

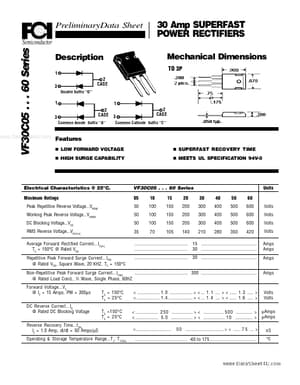

PreliminaryData Sheet 30 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions TO 3P VF30C05 . . . 60 Series Description 1 3 1 3 2 CASE Common Anode Suffix ‘‘A’’ 2 CASE Double Suffix ‘‘D’’ 1 3 2 CASE Common Cathode Suffix ‘‘C’’ www.DataSheet4U.com Features n LOW FORWARD VOLTAGE n HIGH SURGE CAPABILITY n SUPERFAST RECOVERY TIME n MEETS UL SPECIFICATION 94V-0 Electrical Characteristics @ 25o C. Maximum Ratings Peak Repetitive Reverse Voltage...VRRM Working Peak Reverse Voltage...VRWM DC Blocking Voltage...VDC RMS Reverse Voltage...VR(rms) Average Forward Rectified Current...IF(av) TC = 150°C @ Rated VDC Repetitive Peak Forward Surge Current...IFM @ Rated VDC, Square Wave, 20 KHZ, TC = 150°C VF30C05 . . .
