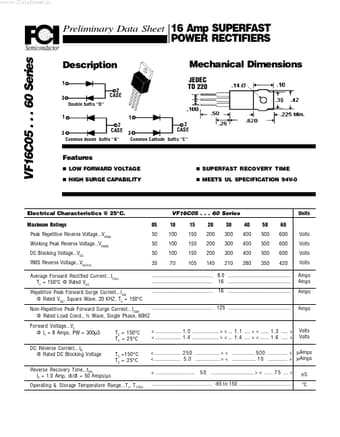

VF16C50 - (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions

Download the VF16C50 datasheet PDF (VF16C05 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (vf16c05 - vf16c60) 16 amp superfast power rectifiers mechanical dimensions.

Description

1 3 1 3 2 CASE Common Anode Suffix ‘‘A’’ Mechanical Dimensions JEDEC TO 220 2 CASE Double Suffix ‘‘D’’ 1 3 2 CASE Common Cathode Suffix ‘‘C’’

Features

  • n LOW.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VF16C05_FirstComponentsInternational.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VF16C50
Manufacturer First Components International
File Size 149.76 KB
Description (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
Datasheet download datasheet VF16C50 Datasheet

📁 Similar Datasheet

  • VF1000 - 5 Port Pilot Operated Solenoid Valve Rubber Seal (SMC)
  • VF10150C - High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF10150S - High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VF1120 - 5 Port Pilot Operated Solenoid Valve Rubber Seal (SMC)
  • VF1220 - 5 Port Pilot Operated Solenoid Valve Rubber Seal (SMC)
  • VF194 - Surface Mount VCXO (ETC)
Other Datasheets by First Components International
  • VF16C05 - (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF16C10 - (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF16C15 - (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF16C20 - (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF16C30 - (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF16C40 - (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions
  • VF16C60 - (VF16C05 - VF16C60) 16 Amp SUPERFAST POWER RECTIFIERS Mechanical Dimensions

Full PDF Text Transcription

Click to expand full text
www.DataSheet.in Preliminary Data Sheet 16 Amp SUPERFAST POWER RECTIFIERS VF16C05 . . . 60 Series Description 1 3 1 3 2 CASE Common Anode Suffix ‘‘A’’ Mechanical Dimensions JEDEC TO 220 2 CASE Double Suffix ‘‘D’’ 1 3 2 CASE Common Cathode Suffix ‘‘C’’ Features n LOW FORWARD VOLTAGE n HIGH SURGE CAPABILITY n SUPERFAST RECOVERY TIME n MEETS UL SPECIFICATION 94V-0 Electrical Characteristics @ 25o C. Maximum Ratings Peak Repetitive Reverse Voltage...VRRM Working Peak Reverse Voltage...VRWM DC Blocking Voltage...VDC RMS Reverse Voltage...VR(rms) Average Forward Rectified Current...IF(av) TC = 150°C @ Rated VDC Repetitive Peak Forward Surge Current...IFM @ Rated VDC, Square Wave, 20 KHZ, TC = 150°C 05 50 50 50 35 VF16C05 . . .
