| Part number | FTLX3813M350P, FTLX3813Mxx |
|---|---|
| Manufacturer | Finisar Corporation |
| File Size | 526.41 KB |

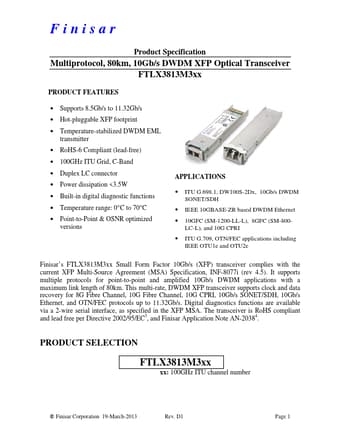

| Description | 10Gb/s DWDM XFP Optical Transceiver |
| Datasheet |
 FTLX3813Mxx-FinisarCorporation.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: FTLX3813M350P, FTLX3813Mxx. Please refer to the document for exact specifications by model. |
Pin Logic Symbol Name/Description Ref.1 GND Module Ground 1 2 VEE5 Optional 5.2 Power Supply Not required 3 LVTTL-I Mod-Desel Module De-select; When held low allows the module to respond to 2-wire serial interface commands 4 LVTTL-O Interrupt Interrupt (bar); Indicates presence of an important condition 2 which can be read over the serial 2-wire interface 5 LVTTL-I TX_DIS Transmitter Disable; Transmitter laser source turned off 6 VCC5 +5 Power Supply 7 G
