LMA110B - .5-8GHz MESFET Amplifier

Description

The Filtronic LMA110B is a GaAs monolithic distributive amplifier which operates from 0.5 to 8 GHz.

This amplifier produces a typical gain of 12.5dB with a noise figure of 3.5dB.

The LMA110B is suitable for wide-band low noise gain block, EW and commercial PCN applications.

Features

  • 3.5dB Typical Noise Figure 12.5dB Typical Gain 12dBm Saturated Output Power 12dB Input/Output Return Loss Typical 0.5-6GHz Frequency Bandwidth +8 Volts Single Bias Supply DC Decoupled RF Input and Output Chip Size : 1.62mmX1.62mm (.064”X.064”) Chip Thickness : 100µm 2 Pad Dimension : 100µm .5-8GHz MESFET Amplifier LMA110B.

📥 Download Datasheet

Datasheet Details

Part number LMA110B
Manufacturer Filtronic Compound Semiconductors
File Size 106.35 KB
Description .5-8GHz MESFET Amplifier
Datasheet download datasheet LMA110B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMA1117 1A Low Dropout Positive Adjustable Kexin
LMA1009 12 x 12-bit Multiplier-Accumulator LOGIC Devices Incorporated
LMA1010 16 x 16-bit Multiplier-Accumulator LOGIC Devices Incorporated
LMA2009JC20 12 x 12-bit Multiplier-Accumulator LOGIC Devices Incorporated
LMA2009JC45 12 x 12-bit Multiplier-Accumulator LOGIC Devices Incorporated

Other Datasheets by Filtronic Compound Semiconductors

Part Number Description
LMA110 .5-6 GHz MESFET Amplifier
LMA110 .5-8GHz MESFET Amplifier
LMA110A .5-6 GHz MESFET Amplifier
LMA116 2-10GHz MESFET Amplifier
LMA183 2-18 GHz MESFET Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

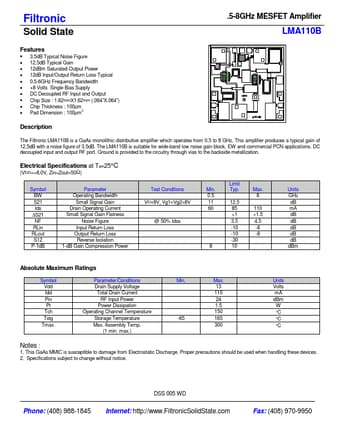

Filtronic Solid State Features • • • • • • • • • • 3.5dB Typical Noise Figure 12.5dB Typical Gain 12dBm Saturated Output Power 12dB Input/Output Return Loss Typical 0.5-6GHz Frequency Bandwidth +8 Volts Single Bias Supply DC Decoupled RF Input and Output Chip Size : 1.62mmX1.62mm (.064”X.064”) Chip Thickness : 100µm 2 Pad Dimension : 100µm .5-8GHz MESFET Amplifier LMA110B Description The Filtronic LMA110B is a GaAs monolithic distributive amplifier which operates from 0.5 to 8 GHz. This amplifier produces a typical gain of 12.5dB with a noise figure of 3.5dB. The LMA110B is suitable for wide-band low noise gain block, EW and commercial PCN applications. DC decoupled input and output RF port. Ground is provided to the circuitry through vias to the backside metallization.
