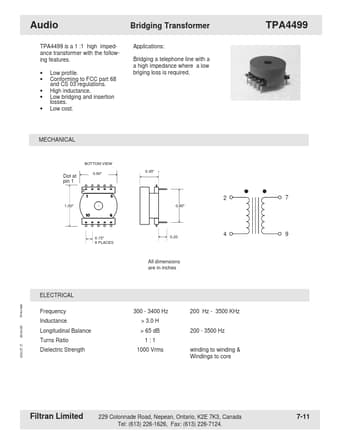

TPA4499, Audio Bridging Transformer

www.DataSheet4U.com Audio TPA4499 is a 1 :1 high impedance transformer with the following

Applications

* Bridging a telephone line with a a high impedance where a low briging loss is required.
TPA4499 MECHANICAL BOTTOM VIEW Dot at pin 1 1 1.00" 10 0.90" 0.45" 5 0.80" 6 2 7 0.15" 8 PLACES 0.20 4 9 All dimensions are in inches ELECTRICAL TPA4499 Frequency Inductance 300 - 3400 Hz > 3.0
