7336-1 - RF Wideband Transformer

📥 Download Datasheet

Datasheet Details

Part number 7336-1
Manufacturer Filtran
File Size 129.30 KB
Description RF Wideband Transformer
Datasheet download datasheet 7336-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
7336 LDO Linear Regulator ChipSourceTek
7330 LDO Linear Regulator ChipSourceTek
7330-A Low Power Consumption LDO Holtek Semiconductor
7333 LDO Linear Regulator ChipSourceTek
7333-A Low Power Consumption LDO Holtek Semiconductor

Other Datasheets by Filtran

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

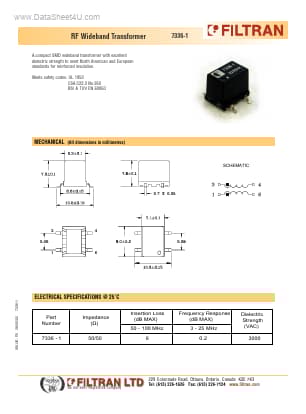

www.DataSheet4U.com RF Wideband Transformer A compact SMD wideband transformer with excellent dielectric strength to meet North American and European standards for reinforced insulation. Meets safety codes: UL 1950 CSA C22.2 No.950 BSI & TUV EN 60950 7336-1 MECHANICAL (All dimensions in millimetres) SCHEMATIC 7336-1 ELECTRICAL SPECIFICATIONS @ 25˚C Insertion Loss (dB MAX) 50 - 100 MHz 7336 - 1 50/50 6 Frequency Response (dB MAX) 3 - 25 MHz 0.2 Dielectric Strength (VAC) 3000 ISSUE: P2 28/05/02 Part Number Impedance (Ω) 229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3 Tel: (613) 226-1626 Fax: (613) 226-7124 www.filtran.
