TGS2201 Dual Sensor Element

TGS2201 Description

FIGARO PRODUCT INFORMATION TGS 2201 - for detection of Gasoline and Diesel Exhaust Gas .

TGS2201 Features

* Dual sensor element
* High sensitivity to exhaust gases emitted by both gasoline and diesel-fueled engines
* Long life and low cost

TGS2201 Applications

* Automobile ventilation control The sensing element is comprised of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater. In the presence of a detectable gas, the sensor's conductivity changes depending on the gas concentration

📥 Download Datasheet

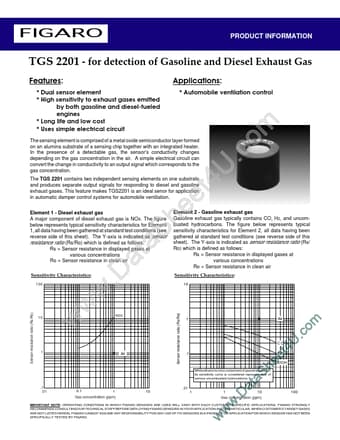

Preview of TGS2201 PDF
datasheet Preview Page 2

Datasheet Details

Part number
TGS2201
Manufacturer
Figaro
File Size
104.28 KB
Datasheet
TGS2201_Figaro.pdf
Description
Dual Sensor Element
