ft2811 Datasheet PDF (2.4W Charge Pump Class-G Audio Amplifier)

ft2811 - 2.4W Charge Pump Class-G Audio Amplifier

Description

The ft2811 is a Class-G audio power amplifier with battery-tracking AGC technology.

It integrates a charge pump and drives up to 2.4W into an 8 Ω speaker (10%THD).

With 74% efficiency, the ft2811 helps extend battery life when playing audio.

Features

Wide Supply Voltage Range from 2.7V to 5.5V.
Class-G Audio Amplifier with Integrated ChargePump.
Constant Output Power at 2.4W into 8Ω Load from 4.0V Supply.
Automatic Gain C.

Datasheet Details

Part number	ft2811
Manufacturer	Fangtek
File Size	109.16 KB
Description	2.4W Charge Pump Class-G Audio Amplifier
Datasheet	ft2811 Datasheet

📁 Similar Datasheet

FT2000A - Fast Silicon Rectifiers (Diotec Semiconductor)

FT2000AA - Superfast Silicon Rectifiers (Diotec)

FT2000AA - FAST RECOVERY RECTIFIERS (EIC)

FT2000AB - Superfast Silicon Rectifiers (Diotec)

FT2000AB - FAST RECOVERY RECTIFIERS (EIC)

FT2000AC - Superfast Silicon Rectifiers (Diotec)

FT2000AD - Superfast Silicon Rectifiers (Diotec)

FT2000AD - FAST RECOVERY RECTIFIERS (EIC)

FT2000AG - Superfast Silicon Rectifiers (Diotec)

FT2000AG - FAST RECOVERY RECTIFIERS (EIC)

Full PDF Text Transcription

Click to expand full text

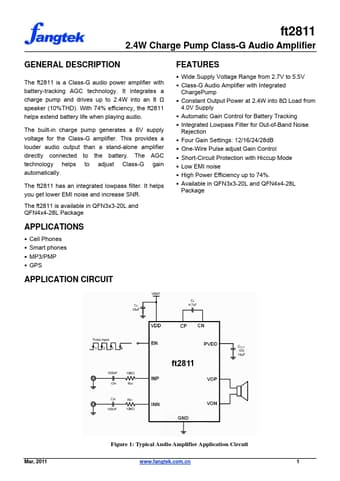

ft2811 2.4W Charge Pump Class-G Audio Amplifier GENERAL DESCRIPTION The ft2811 is a Class-G audio power amplifier with battery-tracking AGC technology. It integrates a charge pump and drives up to 2.4W into an 8 Ω speaker (10%THD). With 74% efficiency, the ft2811 helps extend battery life when playing audio. The built-in charge pump generates a 6V supply voltage for the Class-G amplifier. This provides a louder audio output than a stand-alone amplifier directly connected to the battery. The AGC technology helps to adjust Class-G gain automatically. The ft2811 has an integrated lowpass filter. It helps you get lower EMI noise and increase SNR.

Published: Feb 6, 2019 |
