NDH8301N - Dual N-Channel MOSFET

General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process is especially tailored to minimize on-state resistance.

Key Features

  • 3 A, 20 V. RDS(ON) = 0.06 Ω @ VGS = 4.5 V RDS(ON) = 0.075 Ω @ VGS = 2.7 V. Proprietary SuperSOTTM-8 package design using copper lead frame for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. ____________________________________________________________________________________________ 5 4 3 2 1 6 7 8 Absolute Maximum Ratings T A = 25°C unless otherwise note Symbol VDSS VGSS ID PD TJ,.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDHA500APAE1 Aquamarine Laser Diode ETC
NDHA500APAE1 Aquamarine Laser Diode ETC

Other Datasheets by Fairchild (onsemi)

Part Number Description
NDH8303N Dual N-Channel MOSFET
NDH8304 Dual P-Channel MOSFET
NDH8304P Dual P-Channel MOSFET
NDH831N N-Channel MOSFET
NDH8320C Dual N&P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

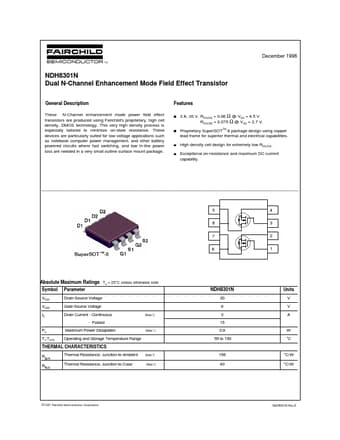

December 1996 NDH8301N Dual N-Channel Enhancement Mode Field Effect Transistor General Description These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage applications such as notebook computer power management, and other battery powered circuits where fast switching, and low in-line power loss are needed in a very small outline surface mount package. Features 3 A, 20 V. RDS(ON) = 0.06 Ω @ VGS = 4.5 V RDS(ON) = 0.075 Ω @ VGS = 2.7 V. Proprietary SuperSOTTM-8 package design using copper lead frame for superior thermal and electrical capabilities.
