MM74HC589 - 8-Bit Shift Registers with Input Latches and 3-STATE Serial Output

Fairchild

The MM74HC589 by Fairchild is a 8-Bit Shift Registers with Input Latches and 3-STATE Serial Output. Below is the official datasheet preview.

📥 Download Datasheet

MM74HC589 8-Bit Shift Registers with Input Latches and 3-STATE Serial Output by Fairchild - Datasheet Preview — Official preview page of the **MM74HC589** 8-Bit Shift Registers with Input Latches and 3-STATE Serial Output datasheet (Fairchild).

Datasheet Details

Part number	MM74HC589
Manufacturer	Fairchild
File Size	89.87 KB
Description	8-Bit Shift Registers with Input Latches and 3-STATE Serial Output
Datasheet	MM74HC589_FairchildSemiconductor.pdf

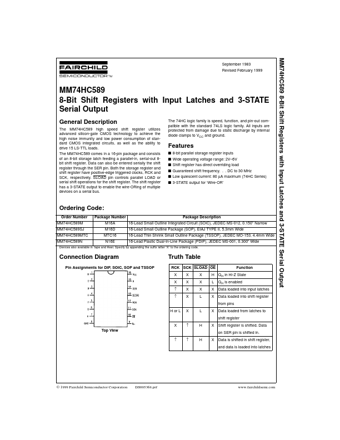

Additional preview pages of the MM74HC589 datasheet.

MM74HC589 Product details

Description

The MM74HC589 high speed shift register utilizes advanced silicon-gate CMOS technology to achieve the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads.

Features

s 8-bit parallel storage register inputs s Wide operating voltage range: 2V.
6V s Shift register has direct overriding load s Guaranteed shift frequency. . . DC to 30 MHz s Low quiescent current: 80 µA maximum (74HC Series) s 3-STATE output for ‘Wire-OR' Ordering Code: Order Number MM74HC589M MM74HC589SJ MM74HC589MTC MM74HC589N Package Number M16A M16D MTC16 N16E Package.
