ML4435 - Sensorless BLDC Motor Controller

Product Overview

Fairchild

Part number	ML4435
Manufacturer	Fairchild
File Size	128.78 KB
Description	Sensorless BLDC Motor Controller
Datasheet	ML4435 Datasheet

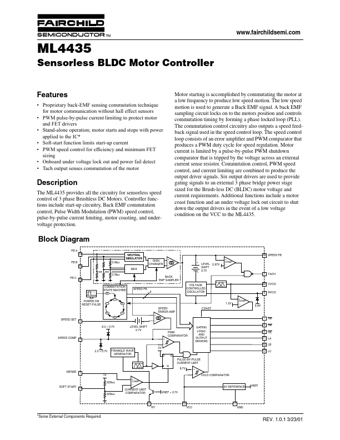

Additional preview pages of the ML4435 datasheet.

The ML4435 provides all the circuitry for sensorless speed control of 3 phase Brushless DC Motors.

Proprietary back-EMF sensing commutation technique for motor communication without hall effect sensors.
PWM pulse-by-pulse current limiting to protect motor and FET drivers.
Stand-alone operation; motor starts and stops with power applied to the IC.
Soft-start function limits start-up current.
PWM speed control for efﬁciency and minimum FET sizing.
Onboard under voltage lock out and power fail detect.
Tach output senses commuta.
