MC7905ACT - 3-Terminal 1A Negative Voltage Regulator

Fairchild

The MC7905ACT by Fairchild is a 3-Terminal 1A Negative Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

MC7905ACT 3-Terminal 1A Negative Voltage Regulator by Fairchild - Datasheet Preview — Official preview page of the **MC7905ACT** 3-Terminal 1A Negative Voltage Regulator datasheet (Fairchild).

Datasheet Details

Part number	MC7905ACT
Manufacturer	Fairchild
File Size	117.77 KB
Description	3-Terminal 1A Negative Voltage Regulator
Datasheet	MC7905ACT_FairchildSemiconductor.pdf

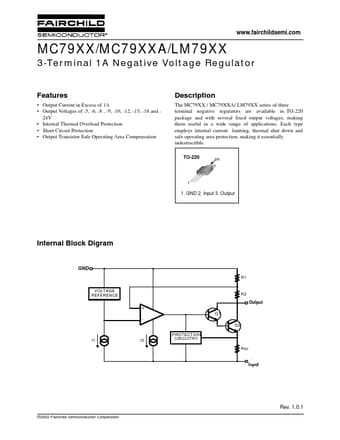

Additional preview pages of the MC7905ACT datasheet.

MC7905ACT Product details

Description

The MC79XX / MC79XXA/ LM79XX series of three terminal negative regulators are available in TO-220 package and with several fixed output voltages, making them useful in a wide range of applications.

Features

Output Current in Excess of 1A.
Output Voltages of -5, -6, -8 , -9, -10, -12, -15, -18 and 24V.
Internal Thermal Overload Protection.
Short Circuit Protection.
Output Transistor Safe Operating Area Compensation.
