KA79M08 - 3-Terminal 0.5A Negative Voltage Regulator

Product Overview

Fairchild

📥 Download Datasheet

KA79M08 3-Terminal 0.5A Negative Voltage Regulator by Fairchild - Datasheet Preview — Datasheet preview – KA79M08

Datasheet Details

Part number	KA79M08
Manufacturer	Fairchild
File Size	70.57 KB
Description	3-Terminal 0.5A Negative Voltage Regulator
Datasheet	KA79M08 Datasheet

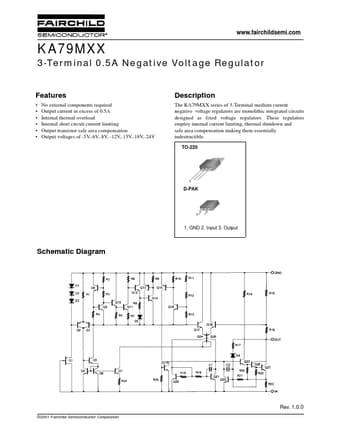

Additional preview pages of the KA79M08 datasheet.

Product details

Description

The KA79MXX series of 3-Terminal medium current negative voltage regulators are monolithic integrated circuits designed as fixed voltage regulators.

Features

No external components required Output current in excess of 0.5A Internal thermal overload Internal short circuit current limiting Output transistor safe area compensation Output voltages of -5V,-6V,-8V, -12V,-15V,-18V,-24V.
