KA7906 - 3-Terminal 1A Negative Voltage Regulator

Fairchild

The KA7906 by Fairchild is a 3-Terminal 1A Negative Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

KA7906 3-Terminal 1A Negative Voltage Regulator by Fairchild - Datasheet Preview — Official preview page of the **KA7906** 3-Terminal 1A Negative Voltage Regulator datasheet (Fairchild).

Datasheet Details

Part number	KA7906
Manufacturer	Fairchild
File Size	218.97 KB
Description	3-Terminal 1A Negative Voltage Regulator
Datasheet	KA7906_FairchildSemiconductor.pdf

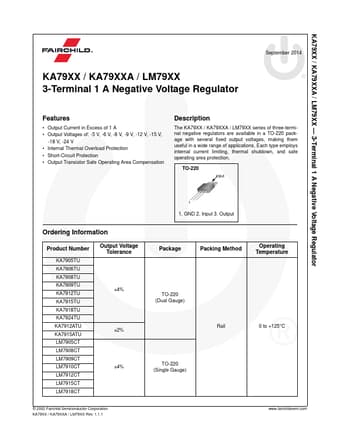

Additional preview pages of the KA7906 datasheet.

KA7906 Product details

Description

The KA79XX / KA79XXA / LM79XX series of three-terminal negative regulators are available in a TO-220 package with several fixed output voltages, making them useful in a wide range of applications.

Features

Output Current in Excess of 1 A.
Output Voltages of: -5 V, -6 V, -8 V, -9 V, -12 V, -15 V, -18 V, -24 V.
Internal Thermal Overload Protection.
Short-Circuit Protection.
Output Transistor Safe Operating Area Compensation.
