IRFS140A - Advanced Power MOSFET

Fairchild

📥 Download Datasheet

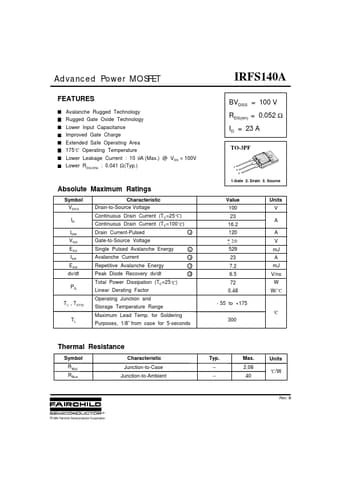

IRFS140A Datasheet Preview — Preview of IRFS140A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRFS140A
Manufacturer	Fairchild
File Size	256.77 KB
Description	Advanced Power MOSFET
Datasheet	IRFS140A_Fairchild.pdf

IRFS140A Product details

Features

Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area 175 C Operating Temperature Lower Leakage Current : 10 µA (Max. ) @ VDS = 100V Lower RDS(ON) : 0.041 Ω (Typ. ) Ο IRFS140A BVDSS = 100 V RDS(on) = 0.052 Ω ID = 23 A TO-3PF 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25 C) Ο Value.
