UC3842A, UC3843A SMPS Controller

UC3842A Description

www.fairchildsemi.com UC3842A/UC3843A SMPS Controller .
The UC3842A/UC3843A are fixed PWM controller for OffLine and DC to DC converter applications.

UC3842A Features

* Low Start Current 0.2mA (typ) Operating Range Up To 500KHz Cycle by Cycle Current Limiting Under Voltage Lock Out With Hysteresis Short Shutdown Delay Time: typ.100ns High Current Totem-pole Output Output Swing Limiting: 22V Desc

UC3842A Applications

* The internal circuits include UVLO, low start up current circuit, temperature compensated reference, high gain error amplifier, current sensing comparator, and high current totem-pole output for driving a POWER MOSFET. Also UC3842A/ UC3843A provide low start up current below 0.3mA and short shutdow

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UC3842A, UC3843A. Please refer to the document for exact specifications by model.

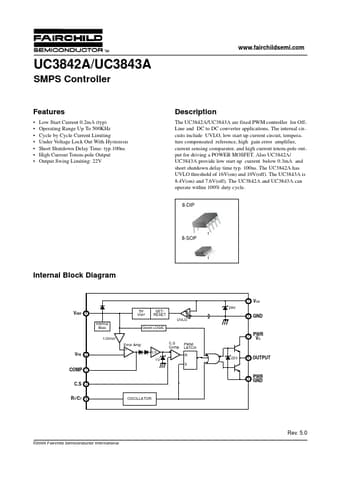

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UC3842A, UC3843A
Manufacturer
Fairchild Semiconductor
File Size
42.49 KB
Datasheet
UC3843A_FairchildSemiconductor.pdf
Description
SMPS Controller
Note
This datasheet PDF includes multiple part numbers: UC3842A, UC3843A.
Please refer to the document for exact specifications by model.
