TN3440A Datasheet - Fairchild Semiconductor

TN3440A, NPN General Purpose Amplifier

TN3440A Discrete POWER & Signal Technologies TN3440A C TO-226 BE NPN General Purpose Amplifier This device is designed for use in horizontal driv.

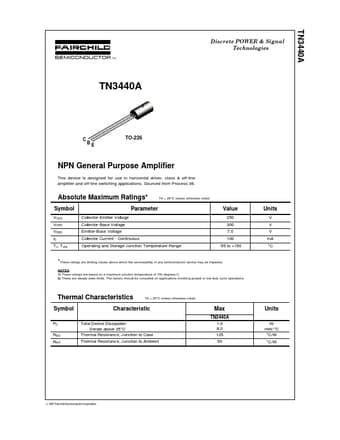

datasheet Preview Page 1 from Datasheet4u.com

TN3440A_FairchildSemiconductor.pdf

Preview of TN3440A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

TN3440A

Manufacturer:

Fairchild Semiconductor

File Size:

113.60 KB

Description:

NPN General Purpose Amplifier

Applications

* Sourced from Process 36. Absolute Maximum Ratings
* Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted Parameter Value 250 300 7.0 100 -55 to +150 Units V V V mA °C Operatin
