SS26 - Schottky Rectifier

Download the SS26 datasheet PDF. This datasheet also covers the SS22 variant, as both devices belong to the same schottky rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

The SS22-S210 series includes high-efficiency, low power loss, general-propose Schottky rectifiers.

The clipbonded leg structure provides high thermal performance and low electrical resistance.

Features

  • Glass-Passivated Junctions.
  • High-Current Capability, Low VF.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SS22-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SS26 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE WON-TOP
SS26 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS GW
SS26 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Suntan
SS26 2.0A Surface Mount Schottky Rectifier TAITRON
SS26 Surface Mount Schottky Barrier Rectifier Vishay

Other Datasheets by Fairchild (onsemi)

Part Number Description
SS22 Schottky Rectifier
SS22FA Surface Mount Schottky Barrier Rectifiers
SS23 Schottky Rectifier
SS23FA Surface Mount Schottky Barrier Rectifiers
SS24 Schottky Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

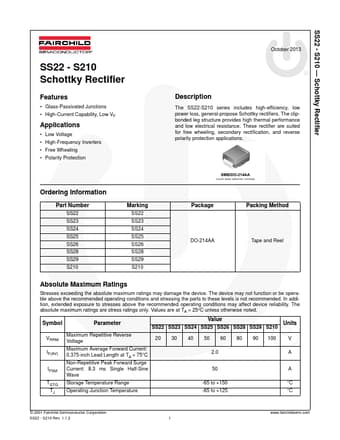

SS22 - S210 — Schottky Rectifier SS22 - S210 Schottky Rectifier Features • Glass-Passivated Junctions • High-Current Capability, Low VF Applications • Low Voltage • High-Frequency Inverters • Free Wheeling • Polarity Protection October 2013 Description The SS22-S210 series includes high-efficiency, low power loss, general-propose Schottky rectifiers. The clipbonded leg structure provides high thermal performance and low electrical resistance. These rectifier are suited for free wheeling, secondary rectification, and reverse polarity protection applications.
