Datasheet Details

Part number	SPT7883
Manufacturer	Fairchild Semiconductor
File Size	91.33 KB
Description	70 MSPS A/D CONVERTER
Datasheet	SPT7883_FairchildSemiconductor.pdf

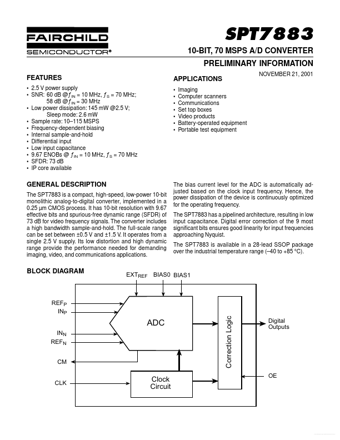

Additional preview pages of the SPT7883 datasheet.

SPT7883 Product details

Description

The SPT7883 is a compact, high-speed, low-power 10-bit monolithic analog-to-digital converter, implemented in a 0.25 µm CMOS process.

Features

2.5 V power supply.
SNR: 60 dB @ƒIN = 10 MHz, ƒS = 70 MHz; 58 dB @ƒIN = 30 MHz.
Low power dissipation: 145 mW @2.5 V; Sleep mode: 2.6 mW.
Sample rate: 10.
115 MSPS.
Frequency-dependent biasing.
Internal sample-and-hold.
Differential input.
Low input capacitance.
9.67 ENOBs @ ƒIN = 10 MHz, ƒS = 70 MHz.
SFDR: 73 dB.
IP core available.
