Glass passivated junction. 500W Peak Pulse Power capability on 10/1000 µs waveform. Excellent clamping capability. Low incremental surge resistance. Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. Typical IR less than 1.0 µA above 10V. 1.0 min (25.4)
Dimensions in inches (mm)
0.300 (7.62) 0.230 (5.84)
DO-15
COLOR BAND.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

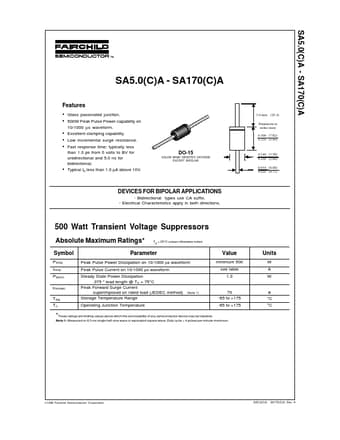

SA5.0(C)A - SA170(C)A
SA5.0(C)A - SA170(C)A
Features • • • • •
Glass passivated junction. 500W Peak Pulse Power capability on 10/1000 µs waveform. Excellent clamping capability. Low incremental surge resistance. Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. Typical IR less than 1.0 µA above 10V.
1.0 min (25.4)
Dimensions in inches (mm)
0.300 (7.62) 0.230 (5.84)
DO-15
COLOR BAND DENOTES CATHODE EXCEPT BIPOLAR
0.140 (3.56) 0.104 (2.64) 0.034 (0.86) 0.028 (0.71)
•
DEVICES FOR BIPOLAR APPLICATIONS
- Bidirectional types use CA suffix. - Electrical Characteristics apply in both directions.
SA50 Datasheet
