SA45CA - Transient Voltage Supressors

Download the SA45CA datasheet PDF. This datasheet also covers the SA40CA variant, as both devices belong to the same transient voltage supressors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass passivated junction.
  • 500W Peak Pulse Power capability on 10/1000 µs waveform.
  • Excellent clamping capability.
  • Low incremental surge resistance.
  • Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional.
  • Typical IR less than 1.0 µA above 10V. DO-15 COLOR BAND.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SA40CA-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SA45CA 500WATTS TRANSIENT VOLTAGE SUPPRESSOR MCC
SA45CA AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS MIC
SA45CA GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR SEMITECH
SA45CA 500W TRANSIENT VOLTAGE SUPPRESSOR Won-Top Electronics
SA45CA 500W TRANSIENT VOLTAGE SUPPRESSOR Diodes Incorporated

Other Datasheets by Fairchild (onsemi)

Part Number Description
SA45A Transient Voltage Suppressors
SA40A Transient Voltage Suppressors
SA40CA Transient Voltage Supressors
SA43A Transient Voltage Suppressors
SA43CA Transient Voltage Supressors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

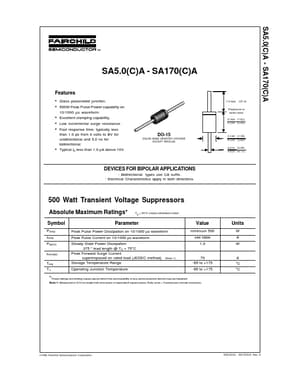

SA5.0(C)A - SA170(C)A SA5.0(C)A - SA170(C)A Features • Glass passivated junction. • 500W Peak Pulse Power capability on 10/1000 µs waveform. • Excellent clamping capability. • Low incremental surge resistance. • Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. • Typical IR less than 1.0 µA above 10V. DO-15 COLOR BAND DENOTES CATHODE EXCEPT BIPOLAR DEVICES FOR BIPOLAR APPLICATIONS - Bidirectional types use CA suffix. - Electrical Characteristics apply in both directions. 1.0 min (25.4) Dimensions in inches (mm) 0.300 (7.62) 0.230 (5.84) 0.140 (3.56) 0.104 (2.64) 0.034 (0.86) 0.028 (0.
