SA13A - Transient Voltage Suppressors

Fairchild Semiconductor

📥 Download Datasheet

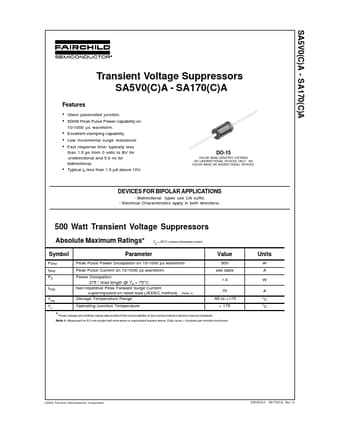

SA13A Datasheet Preview — Preview of SA13A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SA13A
Manufacturer	Fairchild Semiconductor
File Size	85.09 KB
Description	Transient Voltage Suppressors
Datasheet	SA13A_FairchildSemiconductor.pdf

SA13A Product details

Features

Glass passivated junction. 500W Peak Pulse Power capability on 10/1000 µs waveform. Excellent clamping capability. Low incremental surge resistance. Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. Typical IR less than 1.0 µA above 10V. DO-15 COLOR BAND.
