RMPA2550 - 2.4-2.5 GHz and 5.15-5.85 GHz Dual Band InGaP HBT Linear Power Amplifier

Fairchild Semiconductor

The RMPA2550 by Fairchild Semiconductor is a 2.4-2.5 GHz and 5.15-5.85 GHz Dual Band InGaP HBT Linear Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

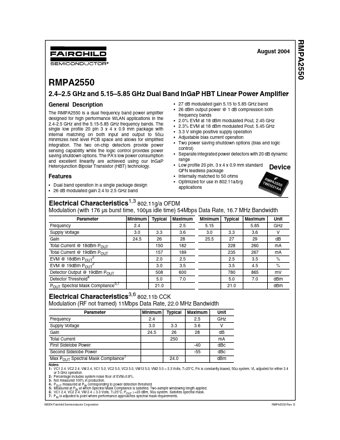

RMPA2550 2.4-2.5 GHz and 5.15-5.85 GHz Dual Band InGaP HBT Linear Power Amplifier by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **RMPA2550** 2.4-2.5 GHz and 5.15-5.85 GHz Dual Band InGaP HBT Linear Power Amplifier datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	RMPA2550
Manufacturer	Fairchild Semiconductor
File Size	838.08 KB
Description	2.4-2.5 GHz and 5.15-5.85 GHz Dual Band InGaP HBT Linear Power Amplifier
Datasheet	RMPA2550_FairchildSemiconductor.pdf
Additional preview pages of the RMPA2550 datasheet.

RMPA2550 Product details

Description

The RMPA2550 is a dual frequency band power amplifier designed for high performance WLAN applications in the 2.4-2.5 GHz and the 5.15-5.85 GHz frequency bands.

Features

Dual band operation in a single package design.
26 dB modulated gain 2.4 to 2.5 GHz band Electrical Characteristics1,3 802.11g/a OFDM Modulation (with 176 µs burst time, 100µs idle time) 54Mbps Data Rate, 16.7 MHz Bandwidth Parameter Frequency Supply Voltage Gain Total Current @ 18dBm POUT Total Current @ 19dBm POUT EVM @ 18dBm POUT2 EVM @ 19dBm POUT2 Detector Output @ 19dBm POUT Detector Threshold4 POUT Spectral Mask Compliance5,7 Minimum 2.4 3.0 24.5 Typical 3.3 26 150 157.
