QTLP690C-AG - SURFACE MOUNT LED LAMP SUPER BRIGHT 0402

Fairchild Semiconductor

📥 Download Datasheet

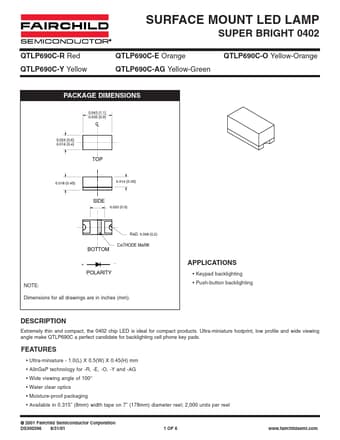

QTLP690C-AG Datasheet Preview — Preview of QTLP690C-AG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	QTLP690C-AG
Manufacturer	Fairchild Semiconductor
File Size	131.14 KB
Description	SURFACE MOUNT LED LAMP SUPER BRIGHT 0402
Datasheet	QTLP690C-AG_FairchildSemiconductor.pdf

QTLP690C-AG Product details

Description

Extremely thin and compact, the 0402 chip LED is ideal for compact products.

Features

Ultra-miniature - 1.0(L) X 0.5(W) X 0.45(H) mm.
AllnGaP technology for -R, -E, -O, -Y and -AG.
Wide viewing angle of 100°.
Water clear optics.
Moisture-proof packaging.
Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel  2001 Fairchild Semiconductor Corporation DS300396 8/31/01 1 OF 6 www. fairchildsemi. com.
