QTLP651C-Y - SURFACE MOUNT LED LAMP

Download the QTLP651C-Y datasheet PDF. This datasheet also covers the QTLP651C-R variant, as both devices belong to the same surface mount led lamp family and are provided as variant models within a single manufacturer datasheet.

Description

These surface mount chip LEDs are designed to fit industry standard footprint.

Features

  • a recessed, inner lens that focuses the light output, offering greater luminous intensity for direct viewing.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (QTLP651C-R-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
QTLP670C-2 SMT LED LAMP PLCC-2 PACKAGE QT Optoelectronics
QTLP670C-3 SMT LED LAMP PLCC-2 PACKAGE QT Optoelectronics
QTLP670C-4 SMT LED LAMP PLCC-2 PACKAGE QT Optoelectronics
QTLP670C-7 SMT LED LAMP PLCC-2 PACKAGE QT Optoelectronics
QTLP282-2 SURFACE MOUNT LED LAMP FLAT TYPE QT Optoelectronics

Other Datasheets by Fairchild (onsemi)

Part Number Description
QTLP651C-2 SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens
QTLP651C-3 SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens
QTLP651C-4 SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens
QTLP651C-7 SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens
QTLP651C-AG SURFACE MOUNT LED LAMP

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

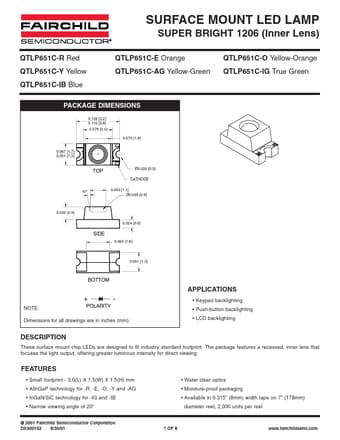

SURFACE MOUNT LED LAMP SUPER BRIGHT 1206 (Inner Lens) QTLP651C-R Red QTLP651C-Y Yellow QTLP651C-IB Blue QTLP651C-E Orange QTLP651C-AG Yellow-Green QTLP651C-O Yellow-Orange QTLP651C-IG True Green PACKAGE DIMENSIONS 0.126 (3.2) 0.110 (2.8) 0.079 (2.0) 0.070 (1.8) 0.067 (1.7) 0.051 (1.3) TOP Ø0.020 (0.5) CATHODE 10° 0.043 (1.1) Ø0.035 (0.9) 0.035 (0.9) SIDE 0.024 (0.6) 0.063 (1.6) 0.051 (1.3) BOTTOM NOTE: +- POLARITY Dimensions for all drawings are in inches (mm). APPLICATIONS • Keypad backlighting • Push-button backlighting • LCD backlighting DESCRIPTION These surface mount chip LEDs are designed to fit industry standard footprint. The package features a recessed, inner lens that focuses the light output, offering greater luminous intensity for direct viewing.
