QTLP601C-4 - SURFACE MOUNT LED LAMP STANDARD BRIGHT 0603 (0.6 mm Height)

Fairchild Semiconductor

📥 Download Datasheet

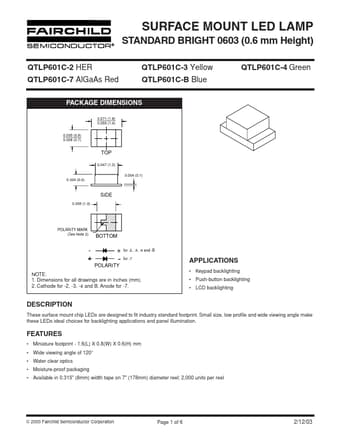

QTLP601C-4 Datasheet Preview — Preview of QTLP601C-4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	QTLP601C-4
Manufacturer	Fairchild Semiconductor
File Size	362.52 KB
Description	SURFACE MOUNT LED LAMP STANDARD BRIGHT 0603 (0.6 mm Height)
Datasheet	QTLP601C-4_FairchildSemiconductor.pdf

QTLP601C-4 Product details

Description

These surface mount chip LEDs are designed to ﬁt industry standard footprint.

Features

Miniature footprint - 1.6(L) X 0.8(W) X 0.6(H) mm.
Wide viewing angle of 120°.
Water clear optics.
Moisture-proof packaging.
Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel © 2003 Fairchild Semiconductor Corporation Page 1 of 6 2/12/03.
