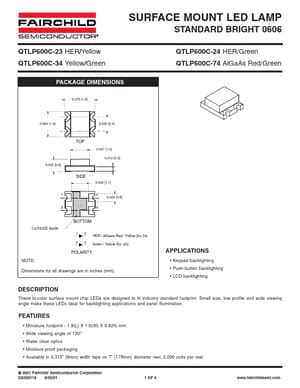

QTLP600C
DESCRIPTION
These bi-color surface mount chip LEDs are designed to fit industry standard footprint. Small size, low profile and wide viewing angle make these LEDs ideal for backlighting applications and panel illumination.
FEATURES
- Miniature footprint
- 1.9(L) X 1.6(W) X 0.8(H) mm
- Wide viewing angle of 130°
- Water clear optics
- Moisture-proof packaging
- Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel
2001 Fairchild Semiconductor Corporation DS300118 8/30/01
1 OF 6
.fairchildsemi.
SURFACE MOUNT LED LAMP
STANDARD BRIGHT 0606
QTLP600C-23 HER/Yellow QTLP600C-34 Yellow/Green
ABSOLUTE MAXIMUM RATINGS
Parameter Continuous Forward Current Peak Forward Current (f = 1.0 KHz, Duty Factor = 1/10) Reverse Voltage Power Dissipation Operating Temperature Storage Temperature Lead Soldering Time Symbol IF IFM VR PD TOPR TSTG TSOL
QTLP600C-24 HER/Green QTLP600C-74 Al Ga As Red/Green
(TA =25°C Unless otherwise specified) QTLP600C -23 30 / 30 160 / 160...
