QSE122 - PLASTIC SILICON INFRARED PHOTOTRANSISTOR

Description

The QSE122 is a silicon phototransistor encapsulated in a wide angle, infrared transparent, black plastic sidelooker package.

Features

  • NPN silicon phototransistor Package type: Sidelooker Medium wide reception angle, 50° Package material and color: black epoxy Matched emitter: QEE113 Daylight filter High sensitivity © 2002 Fairchild Semiconductor Corporation Page 1 of 4 5/1/02.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
QSE122 SIDELOOKE PHOTOTRANSISTOR QT Optoelectronics
QSE123 SIDELOOKE PHOTOTRANSISTOR QT Optoelectronics
QSE113 SIDELOODER PHOTOTRANSISTOR QT Optoelectronics
QSE113 Plastic Silicon Infrared Phototransistor ON Semiconductor
QSE114 SIDELOODER PHOTOTRANSISTOR QT Optoelectronics

Other Datasheets by Fairchild (onsemi)

Part Number Description
QSE113 PLASTIC SILICON INFRARED PHOTOTRANSISTOR
QSE114 PLASTIC SILICON INFRARED PHOTOTRANSISTOR
QSE133 PLASTIC SILICON INFRARED PHOTOTRANSISTOR
QSE156 OPTOLOGIC
QSE157 OPTOLOGIC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

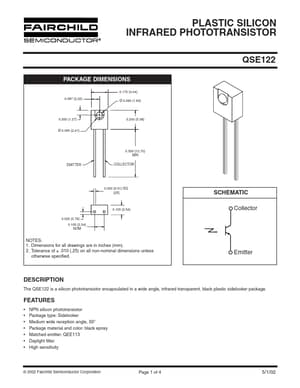

PLASTIC SILICON INFRARED PHOTOTRANSISTOR QSE122 PACKAGE DIMENSIONS 0.175 (4.44) 0.087 (2.22) Ø 0.065 (1.65) 0.050 (1.27) 0.200 (5.08) Ø 0.095 (2.41) 0.500 (12.70) MIN EMITTER COLLECTOR 0.020 (0.51) SQ. (2X) SCHEMATIC Collector 0.100 (2.54) 0.030 (0.76) 0.100 (2.54) NOM NOTES: 1. Dimensions for all drawings are in inches (mm). 2. Tolerance of ± .010 (.25) on all non-nominal dimensions unless otherwise specified. Emitter DESCRIPTION The QSE122 is a silicon phototransistor encapsulated in a wide angle, infrared transparent, black plastic sidelooker package.
