PN2222A NPN General-Purpose Amplifier

Fairchild Semiconductor

Description

PN2222A * NPN General-Purpose Amplifier July 2014 PN2222A NPN General-Purpose Amplifier .

📥 Download Datasheet

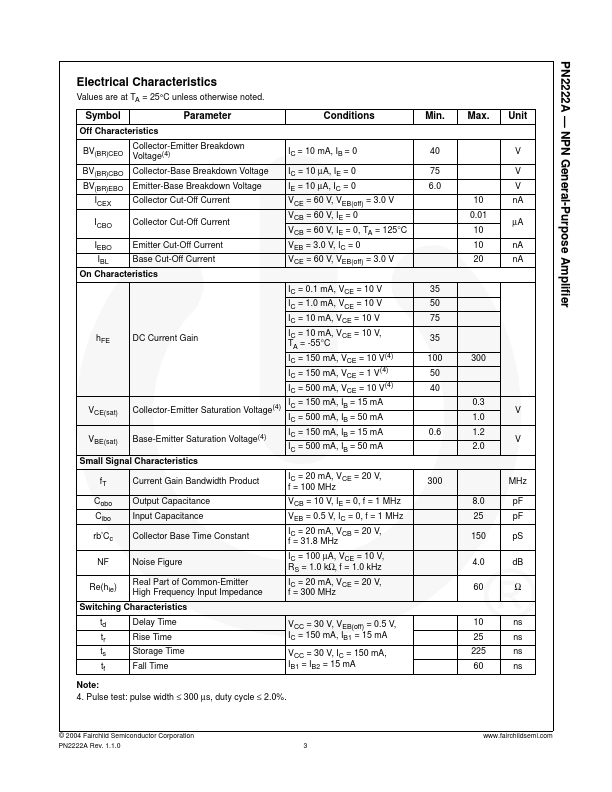

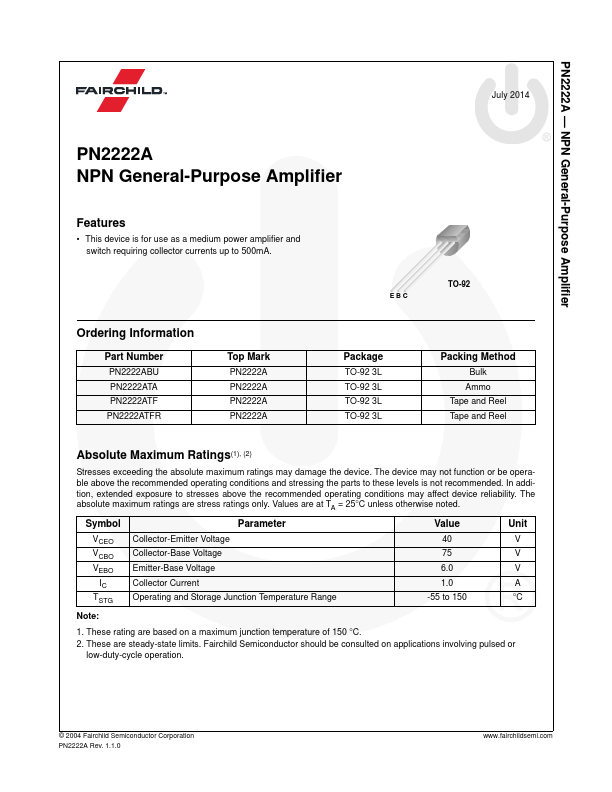

PN2222A Datasheet Preview — Preview of PN2222A PDF

Datasheet Specifications

Part number: PN2222A
Manufacturer: Fairchild Semiconductor
File Size: 193.95 KB
Datasheet: PN2222A-FairchildSemiconductor.pdf
Description: NPN General-Purpose Amplifier

Features

* This device is for use as a medium power amplifier and switch requiring collector currents up to 500mA. EBC TO-92 Ordering Information Part Number PN2222ABU PN2222ATA PN2222ATF PN2222ATFR Top Mark PN2222A PN2222A PN2222A PN2222A Package TO-92 3L TO-92 3L TO-92 3L TO-92 3L Packing Met

Applications

* involving pulsed or low-duty-cycle operation. © 2004 Fairchild Semiconductor Corporation PN2222A Rev. 1.1.0 www. fairchildsemi. com PN2222A

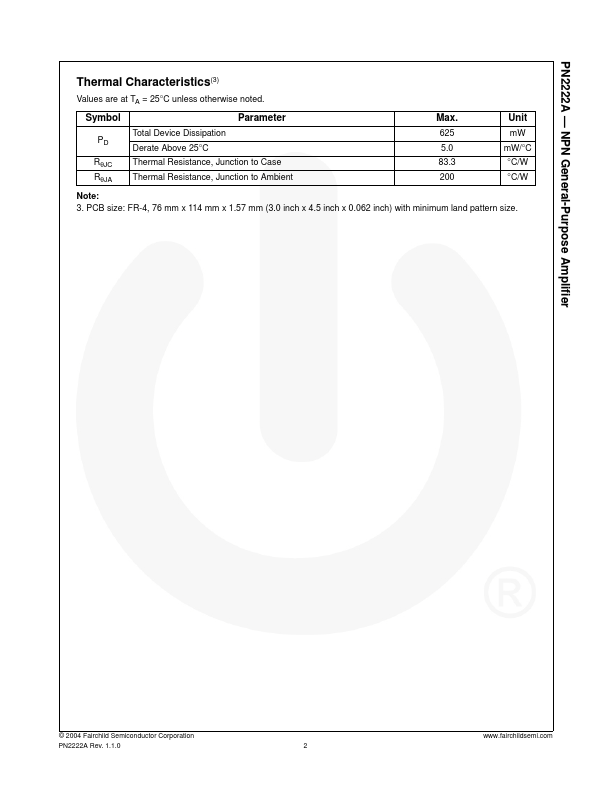

* NPN General-Purpose Amplifier Thermal Characteristics(3) Values are at TA = 25°C unless otherwise noted. Symbol Parameter Max. Unit Total Devi
