P6N70A - SSP6N70A

Name: P6N70A
SKU: P6N70A-686643

Fairchild Semiconductor

The P6N70A by Fairchild Semiconductor is a SSP6N70A. Below is the official datasheet preview.

Datasheet Details

Part number	P6N70A
Manufacturer	Fairchild Semiconductor
File Size	262.74 KB
Description	SSP6N70A
Datasheet	P6N70A_FairchildSemiconductor.pdf

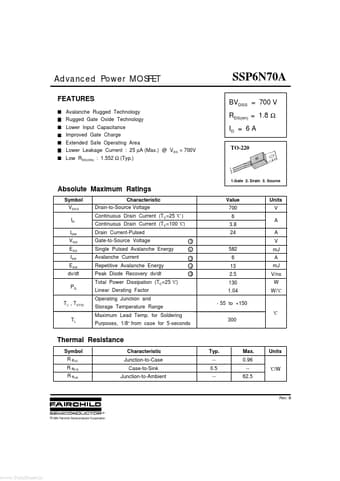

Additional preview pages of the P6N70A datasheet.

Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area Lower Leakage Current : 25 µA (Max. ) @ VDS = 700V Low RDS(ON) : 1.552 Ω (Typ. ) 1 2 3 SSP6N70A BVDSS = 700 V RDS(on) = 1.8 Ω ID = 6 A TO-220 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25 C ) Continuous Drain Current (TC=100 C) Drain C.
