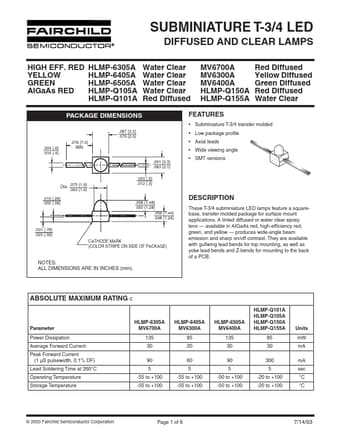

MV6700A, MV6400A (MV6x00A) SUBMINIATURE T-3/4 LED DIFFUSED and CLEAR LAMPS

MV6700A Description

SUBMINIATURE T-3/4 LED DIFFUSED AND CLEAR LAMPS HIGH EFF.RED YELLOW GREEN AIGaAs RED HLMP-6305A HLMP-6405A HLMP-6505A HLMP-Q105A HLMP-Q101A Water Cle.
These T-3/4 subminiature LED lamps feature a squarebase, transfer molded package for surface mount applications.

MV6700A Features

* Subminiature T-3/4 transfer molded
* Low package profile
* Axial leads
* Wide viewing angle .091 (2.3) .083 (2.1)
* SMT versions DIA .010 (.26) .002 (.06) .075 (1.9) .063 (1.6) .020 (.5) .012 (.3) .058 (1.48) .050 (1.28) .056 (1.44) .048 (1.24) DESCRIPT

MV6700A Applications

* A tinted diffused or water clear epoxy lens
* available in AIGaAs red, high-efficiency red, green, and yellow
* produces wide-angle beam emission and sharp on/off contrast. They are available with gullwing lead bends for top mounting, as well as yoke lead bends and Z-bends for mounti

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MV6700A, MV6400A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MV6700A, MV6400A
Manufacturer
Fairchild Semiconductor
File Size
519.30 KB
Datasheet
MV6400A_FairchildSemiconductor.pdf
Description
(MV6x00A) SUBMINIATURE T-3/4 LED DIFFUSED and CLEAR LAMPS
Note
This datasheet PDF includes multiple part numbers: MV6700A, MV6400A.
Please refer to the document for exact specifications by model.
