MTP3055VL - N-Channel Logic Level Enhancement Mode Field Effect Transistor

Fairchild Semiconductor

Datasheet Details

Part number	MTP3055VL
Manufacturer	Fairchild Semiconductor
File Size	39.35 KB
Description	N-Channel Logic Level Enhancement Mode Field Effect Transistor

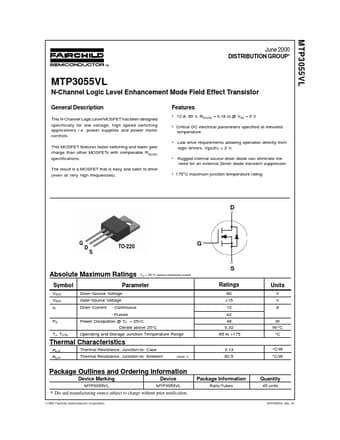

Datasheet	MTP3055VL-FairchildSemiconductor.pdf

This N-Channel Logic Level MOSFET has been designed specifically for low voltage, high speed switching applications i.e.

faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies). Features.
12 A, 60 V. RDS(ON) = 0.18 Ω @ VGS = 5 V.
Critical DC electrical parameters specified at elevated temperature.
Low drive requirements allowing operation directly from logic drivers. Vgs(th) < 2 V.
Rugged internal source-drain diode can eliminate the need for an ext.
