MOC3033M - 6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER

Download the MOC3033M datasheet PDF. This datasheet also covers the MOC3031M variant, as both devices belong to the same 6-pin dip zero-cross optoisolators triac driver family and are provided as variant models within a single manufacturer datasheet.

Description

The MOC303XM and MOC304XM devices consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.

Features

  • Simplifies logic control of 115 VAC power.
  • Zero voltage crossing.
  • dv/dt of 2000 V/µs typical, 1000 V/µs guaranteed.
  • VDE recognized (File # 94766) -ordering option V (e. g. , MOC3043VM).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MOC3031M_FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MOC3033M 6-Pin DIP Zero-Cross Triac Driver Output Optocoupler ON Semiconductor
MOC3033 OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC ETC
MOC3030 OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC ETC
MOC3031 OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC ETC
MOC3031M 6-Pin DIP Zero-Cross Triac Driver Output Optocoupler ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
MOC3031M 6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER
MOC3032M 6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER
MOC3010M 6-Pin DIP Random-Phase Triac Driver Output Optocoupler
MOC3011M 6-Pin DIP Random-Phase Triac Driver Output Optocoupler
MOC3012M 6-Pin DIP Random-Phase Triac Driver Output Optocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

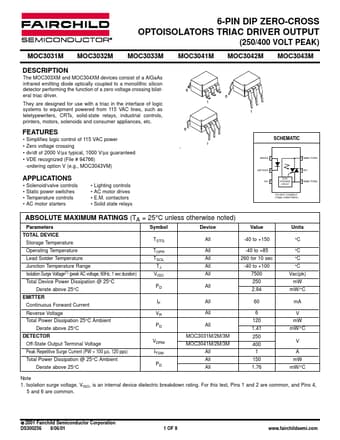

6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER OUTPUT (250/400 VOLT PEAK) MOC3031M MOC3032M MOC3033M MOC3041M MOC3042M MOC3043M DESCRIPTION The MOC303XM and MOC304XM devices consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines, such as teletypewriters, CRTs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc. FEATURES • Simplifies logic control of 115 VAC power • Zero voltage crossing • dv/dt of 2000 V/µs typical, 1000 V/µs guaranteed • VDE recognized (File # 94766) -ordering option V (e.g.
