MOC207-M, MOC205-M - (MOC205-M - MOC208-M) SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT

Fairchild Semiconductor

📥 Download Datasheet

MOC207-M Datasheet Preview — This datasheet PDF includes multiple part numbers: MOC207-M, MOC205-M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MOC207-M, MOC205-M
Manufacturer	Fairchild Semiconductor
File Size	540.06 KB
Description	(MOC205-M - MOC208-M) SMALL OUTLINE OPTOCOUPLERS TRANSISTOR OUTPUT
Datasheet	MOC205-M_FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MOC207-M, MOC205-M. Please refer to the document for exact specifications by model.

MOC207-M Product details

Description

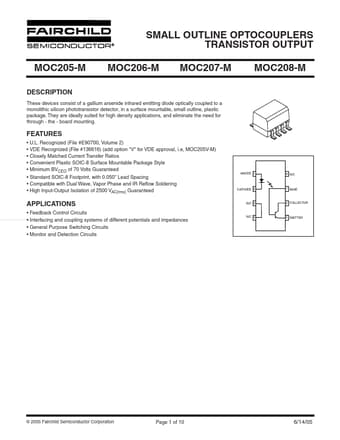

These devices consist of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon phototransistor detector, in a surface mountable, small outline, plastic package.

Features

U. L. Recognized (File #E90700, Volume 2).
VDE Recognized (File #136616) (add option "V" for VDE approval, i. e, MOC205V-M).
Closely Matched Current Transfer Ratios.
Convenient Plastic SOIC-8 Surface Mountable Package Style.
Minimum BVCEO of 70 Volts Guaranteed.
Standard SOIC-8 Footprint, with 0.050" Lead Spacing.
Compatible with Dual Wave, Vapor Phase and IR Reﬂow Soldering.
High Input-Output Isolation of 2500 VAC(rms) Guara.
