LM350 - 3-Terminal 3A Positive Adjustable Regulator

Name: LM350
SKU: LM350-1589841

Fairchild Semiconductor

📥 Download Datasheet

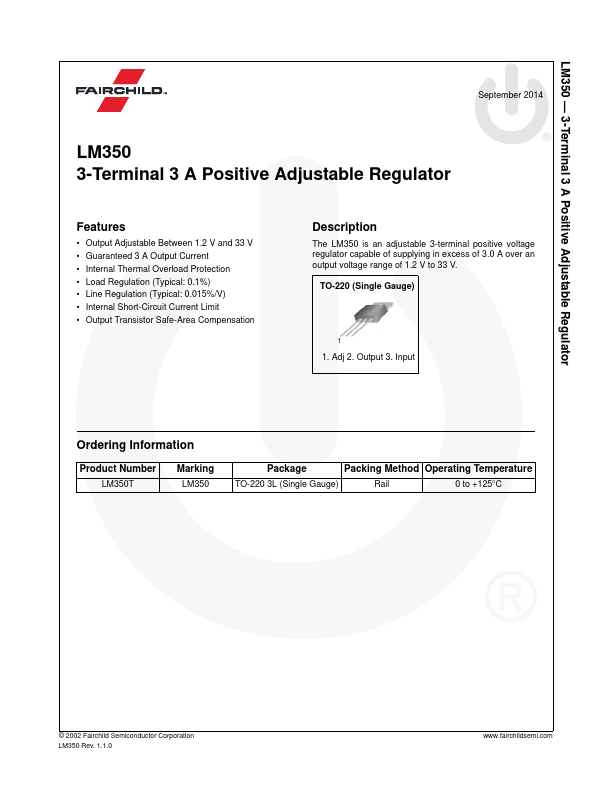

LM350 Datasheet Preview — Preview of LM350 PDF

Datasheet Details

Part number	LM350
Manufacturer	Fairchild Semiconductor
File Size	299.56 KB
Description	3-Terminal 3A Positive Adjustable Regulator
Datasheet	LM350-FairchildSemiconductor.pdf

LM350 Product details

Description

The LM350 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 3.0 A over an output voltage range of 1.2 V to 33 V. 3-Terminal 3 A Positive Adjustable Regulator

Features

Output Adjustable Between 1.2 V and 33 V.
Guaranteed 3 A Output Current.
Internal Thermal Overload Protection.
Load Regulation (Typical: 0.1%).
Line Regulation (Typical: 0.015%/V).
Internal Short-Circuit Current Limit.
Output Transistor Safe-Area Compensation.
