LM331N - V-F Converter

Description

This voltage to frequency converter provides the output pulse train at a frequency precisely proportional to the applied input voltage.

The LM331 can operate at power supplies as low as 4.0V and be changed output frequency from 1Hz to 100KHz.

Features

  • Guaranteed linearity: 0.01% max. Low power dissipation: 15mW at 5V Wide range of full scale frequency: 1Hz to 100KHz Pulse output compatible with all logic forms Wide dynamic range: 100dB min at 10KHz full scale frequency.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM331 Precision Voltage-to-Frequency Converters National Semiconductor
LM331 Precision Voltage-to-Frequency Converters Texas Instruments
LM3310 Step-up PWM DC/DC Converter National Semiconductor
LM3310 Step-Up PWM DC/DC Converter Texas Instruments
LM331A Precision Voltage-to-Frequency Converters National Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
LM331 V-F Converter
LM3302M Quad Comparator
LM3302N Quad Comparator
LM336 Programmable Shunt Regulator
LM336-2.5 Programmable Shunt Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

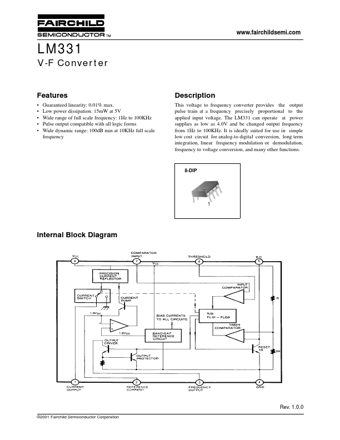

www.fairchildsemi.com LM331 V-F Converter Features • • • • • Guaranteed linearity: 0.01% max. Low power dissipation: 15mW at 5V Wide range of full scale frequency: 1Hz to 100KHz Pulse output compatible with all logic forms Wide dynamic range: 100dB min at 10KHz full scale frequency Description This voltage to frequency converter provides the output pulse train at a frequency precisely proportional to the applied input voltage. The LM331 can operate at power supplies as low as 4.0V and be changed output frequency from 1Hz to 100KHz. It is ideally suited for use in simple low cost circuit for analog-to digital conversion, long term integration, linear frequency modulation or demodulation, frequency to voltage conversion, and many other functions. 8-DIP 1 Internal Block Diagram Rev. 1.
