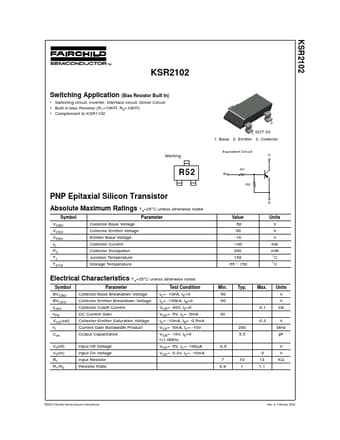

KSR2102, PNP Epitaxial Silicon Transistor

www.DataSheet4U.com KSR2102 KSR2102 Switching Application (Bias Resistor Built In) Switching circuit, Inverter, Interface circuit, Driver Circuit Built in bias Resistor (R1=10KΩ, R2=10KΩ) Complement to KSR1102 2 1 SOT-23 1.

Base 2.

Emitter 3.

Collector Equivalent Circuit Marking R1 B R2 C R5 2 PNP Epitaxial Silicon Transistor E Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Collector-Base Voltage Collector-Emitte
