KSC2715 Datasheet (Fairchild Semiconductor) - NPN Epitaxial Silicon Transistor

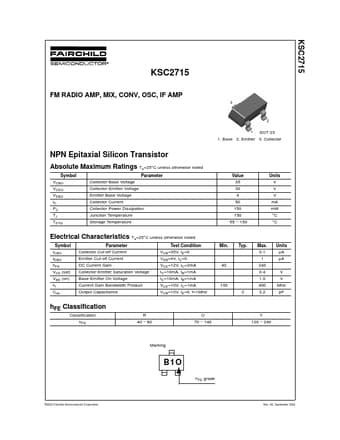

KSC2715, NPN Epitaxial Silicon Transistor

KSC2715 KSC2715 FM RADIO AMP, MIX, CONV, OSC, IF AMP 3 2 1 SOT-23 1.

Base 2.

Emitter 3.

Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Value 35 30 4 50 150 150 -55 ~ 150 Units V V V mA mW °C °C Electrical Characteristics Ta=25°C unless oth
