KSC2073 - NPN Epitaxial Silicon Transistor

Datasheet Summary

Features

  • TV Vertical Deflection Output.
  • Complement to KSA940.
  • Collector-Base Voltage : VCBO = 150V 1 TO-220 1.Base 2.Collector 3.Emitter Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter VCBO VCEO VEBO IC PC TJ TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation (TC = 25°C) Junction Temperature Storage Temperature Value 150 150 5 1.5 25 150 - 55 to 150 Units V V V A W °C °C Electri.

📥 Download Datasheet

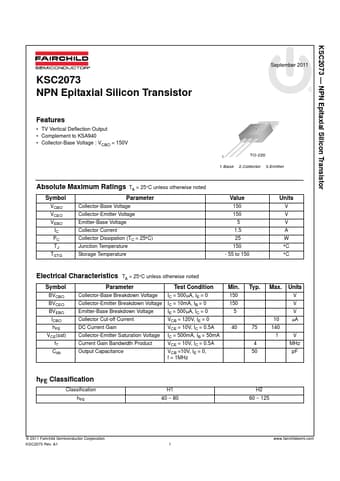

Datasheet preview – KSC2073

Datasheet Details

Part number KSC2073
Manufacturer Fairchild Semiconductor
File Size 105.62 KB
Description NPN Epitaxial Silicon Transistor
Datasheet download datasheet KSC2073 Datasheet
