KSC1393 Datasheet (Fairchild Semiconductor) - NPN Epitaxial Silicon Transistor

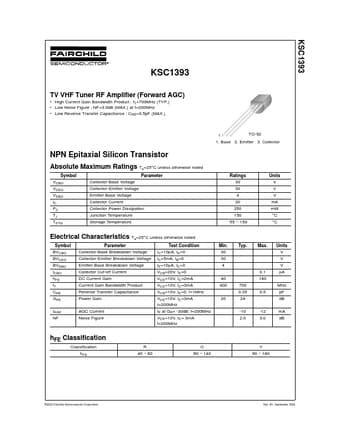

KSC1393, NPN Epitaxial Silicon Transistor

KSC1393 KSC1393 TV VHF Tuner RF Amplifier (Forward AGC) High Current Gain Bandwidth Product : fT=700MHz (TYP.) Low Noise Figure : NF=3.0dB (MAX.) at f=200MHz Low Reverse Transfer Capacitance : CRE=0.5pF (MAX.) 1 TO-92 1.

Base 2.

Emitter 3.

Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector
