KSA708 Datasheet (Fairchild Semiconductor) - PNP Epitaxial Silicon Transistor

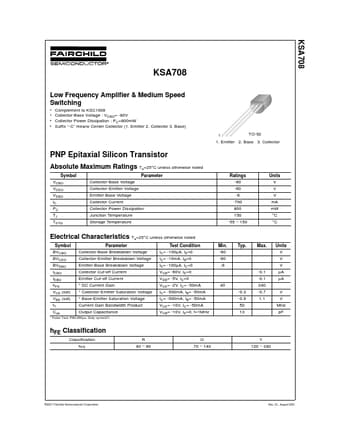

KSA708, PNP Epitaxial Silicon Transistor

KSA708 KSA708 Low Frequency Amplifier & Medium Speed Switching Complement to KSC1008 Collector-Base Voltage : VCBO= -80V Collector Power Dissipation : PC=800mW Suffix “-C” means Center Collector (1.

Emitter 2.

Collector 3.

Base) 1 TO-92 1.

Emitter 2.

Base 3.

Collector PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emi
