KA7810AE, KA78xxE 3-Terminal 1A Positive Voltage Regulator

KA7810AE Description

KA78XXE / KA78XXAE * 3-Terminal 1 A Positive Voltage Regulator April 2015 KA78XXE / KA78XXAE 3-Terminal 1 A Positive Voltage Regulator Feat.
The KA78XXE / KA78XXAE series of three-terminal positive regulators is available in the TO-220 / D-PAK package with several fixed-output voltages, ma.

KA7810AE Features

* Output Current up to 1 A
* Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24 V
* Thermal Overload Protection
* Short-Circuit Protection

KA7810AE Applications

* Each type employs internal current limiting, thermal shut-down, and safe operating area. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed-voltage regulators, these devices can be used with external components for adjustable voltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KA7810AE, KA78xxE. Please refer to the document for exact specifications by model.

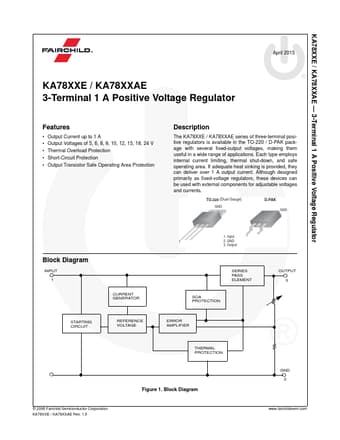

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KA7810AE, KA78xxE
Manufacturer
Fairchild Semiconductor
File Size
384.86 KB
Datasheet
KA78xxE_FairchildSemiconductor.pdf
Description
3-Terminal 1A Positive Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: KA7810AE, KA78xxE.
Please refer to the document for exact specifications by model.
