ISL9V5036S3, ISL9V5036S3S - N-Channel Ignition IGBT

Name: ISL9V5036S3
SKU: ISL9V5036S3-1090076

Fairchild Semiconductor

📥 Download Datasheet

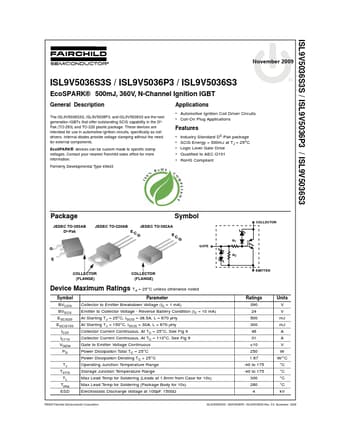

ISL9V5036S3 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL9V5036S3, ISL9V5036S3S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ISL9V5036S3, ISL9V5036S3S
Manufacturer	Fairchild Semiconductor
File Size	344.52 KB
Description	N-Channel Ignition IGBT
Datasheet	ISL9V5036S3S-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: ISL9V5036S3, ISL9V5036S3S. Please refer to the document for exact specifications by model.

ISL9V5036S3 Product details

Description

The ISL9V5036S3S, ISL9V5036P3, and ISL9V5036S3 are the next generation IGBTs that offer outstanding SCIS capability in the D²Pak (TO-263) and TO-220 plastic package.

Features

Industry Standard D2-Pak package.
SCIS Energy = 500mJ at TJ = 25oC.
Logic Level Gate Drive.
Qualified to AEC Q101.
RoHS Compliant Package JEDEC TO-263AB D²-Pak G E Symbol JEDEC TO-220AB JEDEC TO-262AA.
