IN4736A - (IN4728A - IN4764A) Zener Diode

Download the IN4736A datasheet PDF. This datasheet also covers the IN4728A variant, as both devices belong to the same (in4728a - in4764a) zener diode family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IN4728A_FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IN4736A 1.0W ZENER DIODE MAYLOON ELECTRONIC
IN4730A 1.0W ZENER DIODE MAYLOON ELECTRONIC
IN4731A 1.0W ZENER DIODE MAYLOON ELECTRONIC
IN4732A 1.0W ZENER DIODE MAYLOON ELECTRONIC
IN4733A 1.0W ZENER DIODE MAYLOON ELECTRONIC

Other Datasheets by Fairchild (onsemi)

Part Number Description
IN4730A (IN4728A - IN4764A) Zener Diode
IN4731A (IN4728A - IN4764A) Zener Diode
IN4732A (IN4728A - IN4764A) Zener Diode
IN4733A (IN4728A - IN4764A) Zener Diode
IN4734A (IN4728A - IN4764A) Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

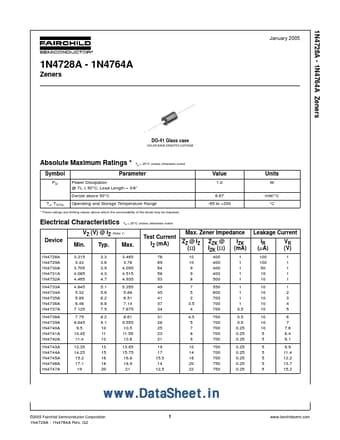

1N4728A - 1N4764A Zeners January 2005 1N4728A - 1N4764A Zeners DO-41 Glass case COLOR BAND DENOTES CATHODE Absolute Maximum Ratings * Symbol PD Ta = 25°C unless otherwise noted Parameter Power Dissipation @ TL ≤ 50°C, Lead Length = 3/8” Derate above 50°C Value 1.0 6.67 -65 to +200 Units W mW/°C °C TJ, TSTG Operating and Storage Temperature Range * These ratings are limiting values above which the serviceability of the diode may be impaired. Electrical Characteristics Device 1N4728A 1N4729A 1N4730A 1N4731A 1N4732A 1N4733A 1N4734A 1N4735A 1N4736A 1N4737A 1N4738A 1N4739A 1N4740A 1N4741A 1N4742A 1N4743A 1N4744A 1N4745A 1N4746A 1N4747A Ta = 25°C unless otherwise noted VZ (V) @ IZ (Note 1) Min. 3.315 3.42 3.705 4.085 4.465 4.845 5.32 5.89 6.46 7.125 7.79 8.645 9.5 10.45 11.4 12.
