HUF75344G3 N-Channel MOSFET

Fairchild Semiconductor

Description

Data Sheet HUF75344G3, HUF75344P3 October 2013 N-Channel UltraFET Power MOSFET 55 V, 75 A, 8 mΩ These N-Channel power MOSFETs are manufactured using.

📥 Download Datasheet

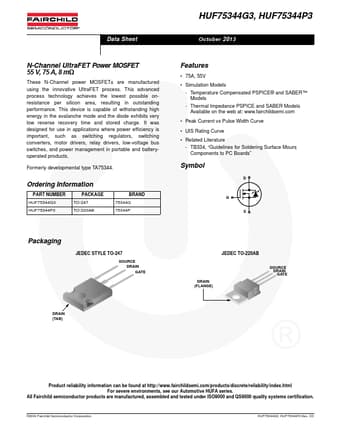

HUF75344G3 Datasheet Preview — Preview of HUF75344G3 PDF

Datasheet Specifications

Part number: HUF75344G3
Manufacturer: Fairchild Semiconductor
File Size: 687.95 KB
Datasheet: HUF75344G3_FairchildSemiconductor.pdf
Description: N-Channel MOSFET

Features

* 75A, 55V
* Simulation Models - Temperature Compensated PSPICE® and SABER™ Models - Thermal Impedance PSPICE and SABER Models Available on the web at: www. fairchildsemi. com
* Peak Current vs Pulse Width Curve
* UIS Rating Curve
* Related Literature - TB334, “

Applications

* where power efficiency is important, such as switching regulators, switching converters, motor drivers, relay drivers, low-voltage bus switches, and power management in portable and batteryoperated products. Formerly developmental type TA75344. Ordering Information PART NUMBER HUF75344G3 HUF75344P
