HMA121 FULL PITCH MINI-FLAT PACKAGE 4-PIN OPTOCOUPLERS

Fairchild Semiconductor

Description

FULL PITCH MINI-FLAT PACKAGE 4-PIN OPTOCOUPLERS HMA121 .
The HMA series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a compact 4-pin mini-ﬂat package.

📥 Download Datasheet

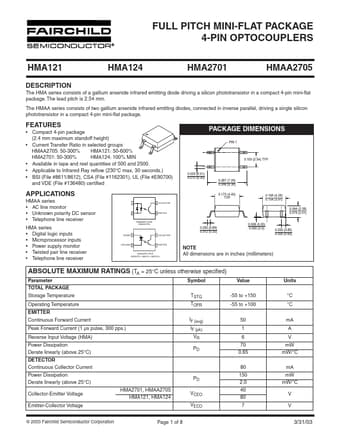

HMA121 Datasheet Preview — Preview of HMA121 PDF

Datasheet Specifications

Part number: HMA121
Manufacturer: Fairchild Semiconductor
File Size: 502.59 KB
Datasheet: HMA121_FairchildSemiconductor.pdf
Description: FULL PITCH MINI-FLAT PACKAGE 4-PIN OPTOCOUPLERS

Features

* Compact 4-pin package (2.4 mm maximum standoff height)
* Current Transfer Ratio in selected groups HMAA2705: 50-300% HMA121: 50-600% HMA2701: 50-300% HMA124: 100% MIN
* Available in tape and reel quantities of 500 and 2500.
* Applicable to Infrared Ray reﬂow (230°C

Applications

* HMAA series
* AC line monitor
* Unknown polarity DC sensor
* Telephone line receiver HMA series
* Digital logic inputs
* Microprocessor inputs
* Power supply monitor
* Twisted pair line receiver
* Telephone line receiver 1 4 COLLECTOR 2
