H11AA3M, H11AA1M (H11AA1M - H11AA4M) AC Input/Phototransistor Optocouplers

H11AA3M Description

H11AA1M, H11AA2M, H11AA3M, H11AA4M * AC Input/Phototransistor Optocouplers September 2009 H11AA1M, H11AA2M, H11AA3M, H11AA4M AC Input/Photot.
The H11AAXM series consists of two gallium-arsenide infrared emitting diodes connected in inverse parallel driving a single silicon phototransistor ou.

H11AA3M Features

* Bi-polar emitter input
* Built-in reverse polarity input protection
* Underwriters Laboratory (UL) recognized File #E90700, Volume 2

H11AA3M Applications

* AC line monitor
* Unknown polarity DC sensor

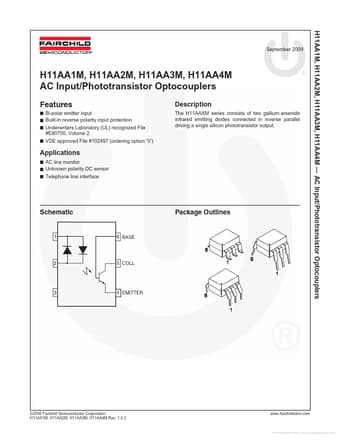

* Telephone line interface Schematic Package Outlines 1 6 BASE 2 5 COLL 3 4 EMITTER ©2006 Fairchild Semiconductor Corporation H11AA1M, H11AA2M, H11AA3M, H11AA4M Rev. 1.0.3 www. fairchildsemi. com Free Datasheet http://www. datasheet4
