GBU6M - Bridge Rectifiers

Download the GBU6M datasheet PDF. This datasheet also covers the GBU6A variant, as both devices belong to the same bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Glass-Passivated Junction.
  • Surge Overload Rating: 175 A Peak.
  • Reliable Low-Cost Construction Utilizing Molded Plastic Technique.
  • Ideal for Printed Circuit Board.
  • UL Certified: UL #E258596 Ordering Informations Part Number GBU6A GBU6B GBU6D GBU6G GBU6J GBU6K GBU6M Marking GBU6A GBU6B GBU6D GBU6G GBU6J GBU6K GBU6M Package GBU 4L GBU 4L GBU 4L GBU 4L GBU 4L GBU 4L GBU 4L +~~ - GBU Packing Method Rail Rail Rail Rail Rail Rail Rail Absolute Maximum R.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBU6A-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
GBU6M GLASS PSSIVATED SINGLE-PHASE BRIDGE RECTIFIER MIC
GBU6M Glass Passivated Single Phase Bridge Rectifiers JGD
GBU6M GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER YS
GBU6M Silicon Bridge Rectifiers GME
GBU6M 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER WON-TOP

Other Datasheets by Fairchild (onsemi)

Part Number Description
GBU6A Bridge Rectifiers
GBU6B Bridge Rectifiers
GBU6D Bridge Rectifiers
GBU6G Bridge Rectifiers
GBU6J Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

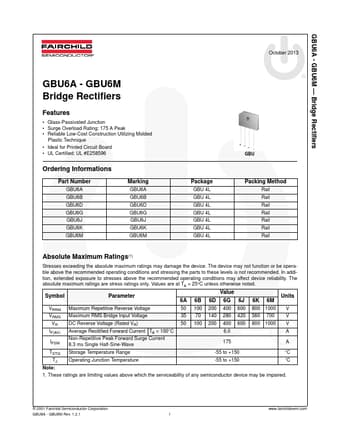

GBU6A - GBU6M — Bridge Rectifiers October 2013 GBU6A - GBU6M Bridge Rectifiers Features • Glass-Passivated Junction • Surge Overload Rating: 175 A Peak • Reliable Low-Cost Construction Utilizing Molded Plastic Technique • Ideal for Printed Circuit Board • UL Certified: UL #E258596 Ordering Informations Part Number GBU6A GBU6B GBU6D GBU6G GBU6J GBU6K GBU6M Marking GBU6A GBU6B GBU6D GBU6G GBU6J GBU6K GBU6M Package GBU 4L GBU 4L GBU 4L GBU 4L GBU 4L GBU 4L GBU 4L +~~ - GBU Packing Method Rail Rail Rail Rail Rail Rail Rail Absolute Maximum Ratings(1) Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera- ble above the recommended operating conditions and stressing the parts to these levels is not recommended.
