FST34X2245 - 32-Bit Bus Switch

Product Overview

Fairchild Semiconductor

Part number	FST34X2245
Manufacturer	Fairchild Semiconductor
File Size	127.39 KB
Description	32-Bit Bus Switch
Datasheet	FST34X2245 Datasheet

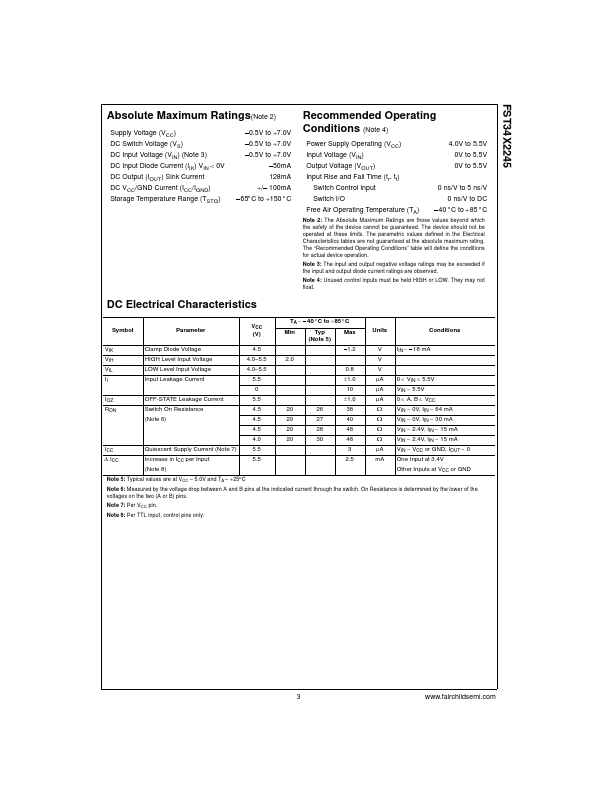

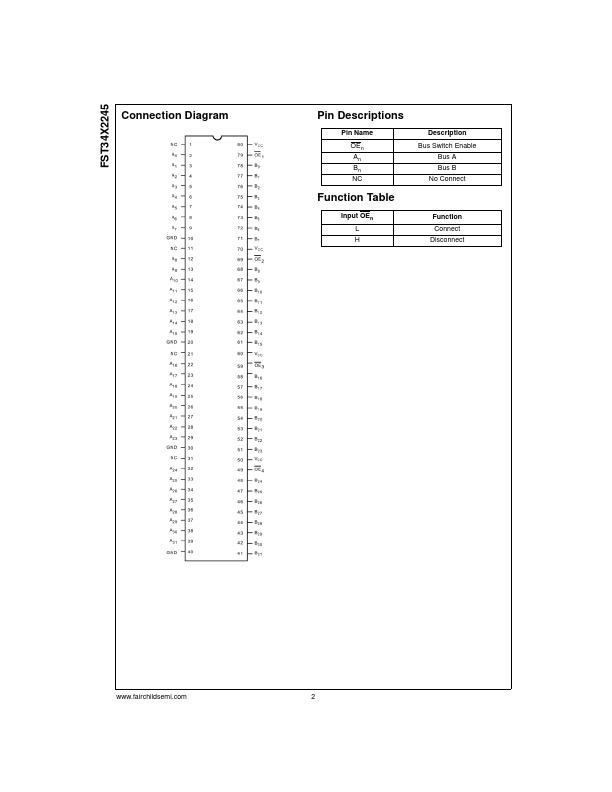

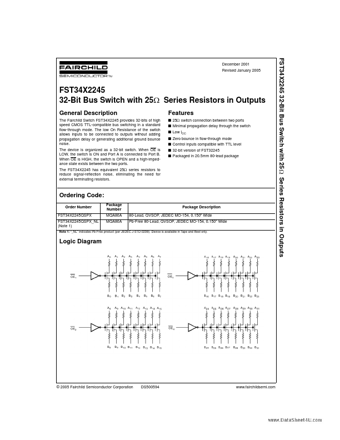

Additional preview pages of the FST34X2245 datasheet.

The Fairchild Switch FST34X2245 provides 32-bits of high speed CMOS TTL-compatible bus switching in a standard flow-through mode.

:.
25 switch connection between two ports.
Minimal propagation delay through the switch.
Low lCC.
Zero bounce in flow-through mode.
Control inputs compatible with TTL level.
32-bit version of FST32245.
Packaged in 20.5mm 80-lead package Ordering Code: Order Number Package Number Package.
