FSB50450AT - Motion SPM 5 Series

Features

  • UL Certified No. E209204 (UL1557).
  • 500 V RDS(on) = 2.4 Max FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection.
  • Built-In Bootstrap Diodes Simplify PCB Layout.
  • Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing.
  • Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input.
  • Optimized for Low Electromagnetic Interference.
  • HVIC Temperature-Sensing Built-In for Temperature Monitoring.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FSB50450B Motion SPM 5 ON Semiconductor
FSB50450BS Motion SPM 5 ON Semiconductor
FSB50250BS Motion SPM5 ON Semiconductor
FSB50550B Motion SPM 5 ON Semiconductor
FSB50550BS Motion SPM 5 ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
FSB50450A Motion SPM5
FSB50450AS Motion SPM5
FSB50450 Smart Power Module
FSB50450S smart power module
FSB50450T Smart Power Module

Full PDF Text Transcription

Click to expand full text

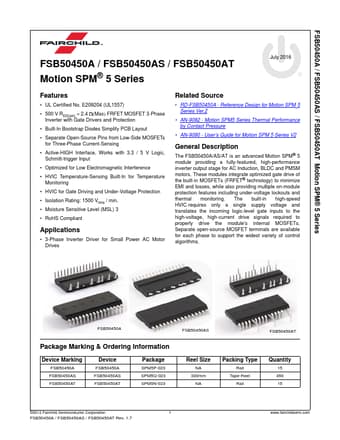

FSB50450A / FSB50450AS / FSB50450AT Motion SPM® 5 Series FSB50450A / FSB50450AS / FSB50450AT Motion SPM® 5 Series July 2016 Features • UL Certified No. E209204 (UL1557) • 500 V RDS(on) = 2.4 Max FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection • Built-In Bootstrap Diodes Simplify PCB Layout • Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing • Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input • Optimized for Low Electromagnetic Interference • HVIC Temperature-Sensing Built-In for Temperature Monitoring • HVIC for Gate Driving and Under-Voltage Protection • Isolation Rating: 1500 Vrms / min.
